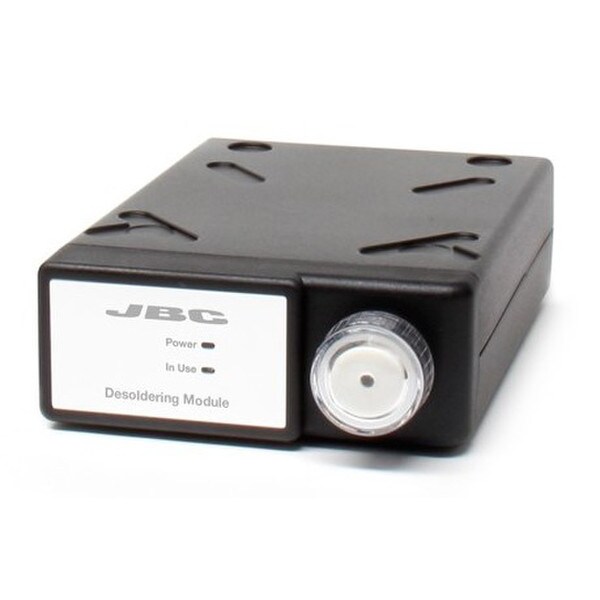

JBC MS-A Electric Desoldering Module for DI

SKU JBC-MS-A
JBC MS-A - Electric Desoldering Module for DI. The electric suction module is indispensable for a complete desoldering process.
Large Unit Dimensions (inches): 8.46x5.12x4.72
Item Weight: 3.3 lb
(0)No Reviews yet

Details

Its optimized electronic suction system create a vacuum peak at the startup in order to collect the solder before it cools down. It is equipped with some suction filters easy to change for extending the pump´s life. MS is compatibe with CS station and DI control unit which manage the tip temperature while module removes the molten solder. MS works with the comfortable DS360 or DR560 desoldering irons and their corresponding tips.
Specifications
Voltage(AC)24V (from control unit)
Vacuum75% / 570mmHg / 22.4inHg
Flow rate9 SLPM
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Documentation
Brochures:
Modular Line(456 Kb)
Exploded View:
Electric:

Product Dimensions (in): Length

8.46

Width

5.12

Height

4.72

Weight

3.3
