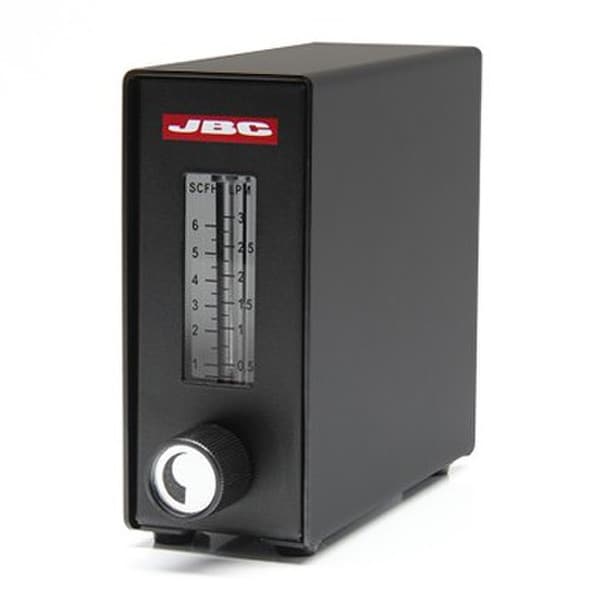

JBC MN-A Nitrogen flow regulator for DI

SKU JBC-MN-A
Nitrogen improves the quality of any solder joint because it provides extra heat and helps prevent tip oxidation.
Large Unit Dimensions (inches): 9.57x4.53x2.95
Item Weight: 2.86 lb
(0)No Reviews yet

Details

The MN-A regulates nitrogen flow to the soldering tip in order to optimize consumption. It automatically activates the flow when you remove the T245-NA handpiece from the stand. The flow stops when the tool is placed back and the tip temperature drops to the sleep mode. It requires the GN-A generator or an available nitrogen supply at the operator´s bench. The MN-A works with DI control unit and the discontinued DD or DM.
Specifications
Voltage(AC)24V (from control unit)
Power3W
N2 flow regulation0,5 - 3,5 SLPM (5 Bar)
Max. pressure6 Bar
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Documentation
Exploded View:
Electric:

Product Dimensions (in): Length

9.57

Width

4.53

Height

2.95

Weight

2.86
