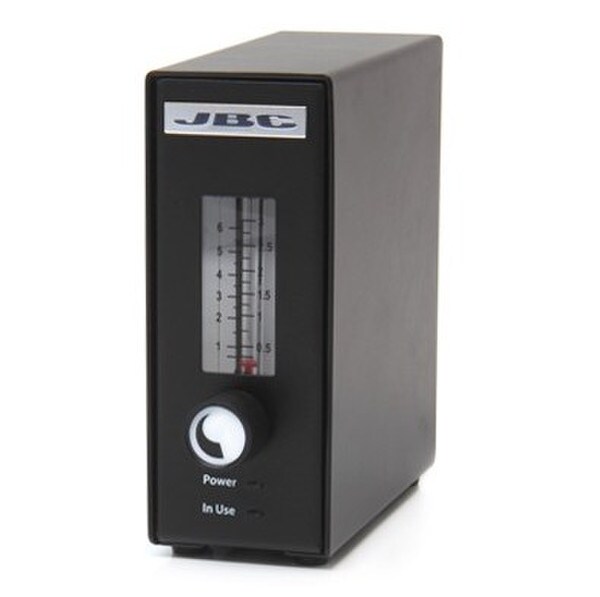

JBC MNE-A Nitrogen flow regulator for DDE & DME

SKU JBC-MNE-A
Nitrogen improves the quality of any solder joint as it provides extra heat and helps prevent tip oxidation.
Large Unit Dimensions (inches): 9.57x4.53x2.95
Item Weight: 2.86 lb
(0)No Reviews yet

Details

The MNE-A regulates nitrogen flow to the soldering tip in order to optimize consumption. It automatically activates the flow when you remove the T245-NA handle from the stand. The flow stops when the tool is placed back and the tip temperature drops to the sleep mode. It requires the GN-A generator or an available nitrogen supply at the operator´s bench. The MNE-A can be joined to any port of the DDE & DME control units and has the possibility to be controlled by the P-005 Pedal.
Specifications
Voltage(AC)24V (from control unit)
Power3W
N2 Pressure range supply3-5 Bar
Max. pressure6 Bar
N2 flow regulation0.5 - 3 SLPM
Recommended N2 flow1-2 SLPM
Ambient operating temp.10-40 ºC / 50-104 ºF
ESD Safe
Documentation
Manuals:
MNE-A Manual(473 Kb)
Brochures:
Exploded View:

Product Dimensions (in): Length

9.57

Width

4.53

Height

2.95

Weight

2.86
