Static Solutions Heel Grounder: Elastic Hook and Loop Enclosure SS-FG-7020

SKU SS-FG-7020

An internal error has occurred

Heel Cup: .060" (1.5mm) thick 1-3/8" wide dual elastomer with non-smudging interior and black (non smudging where noted) exterior
Heel Cup Resistivity: 103-105 Ohms/sq.
Hook/Loop – Velcro fluorescent green
Resistor: One megohm value ¼ watt (+/-10%) carbon film resistor
Tab: Blue (or customized) 3/8" wide fray resistant polyester tab with conductive carbon suffused fibers
Tab to Cup Resistance: 1x106 - 1x107 Ohms

Item Weight: 1 lb

$7.52

Quantity	Price

(0)No Reviews yet

Quantity

Details

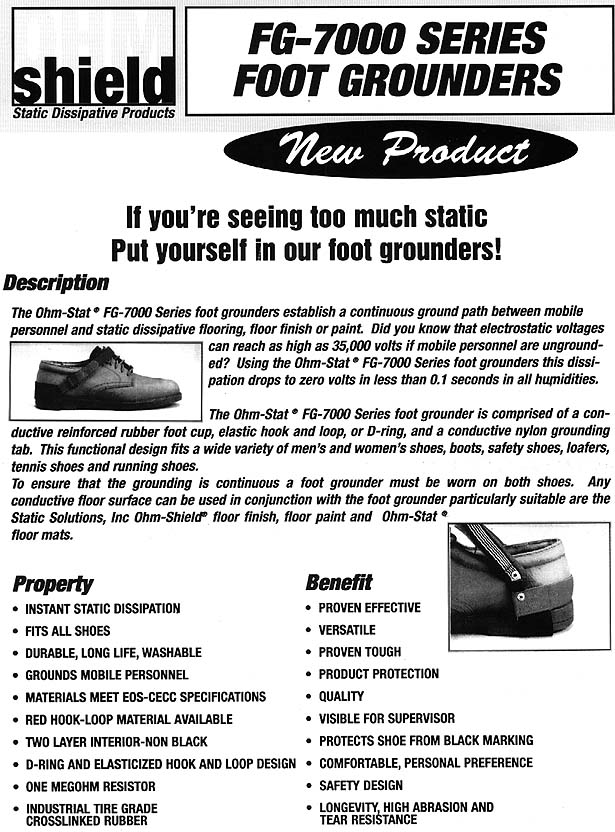

Static Solutions Heel Grounder: Elastic Hook and Loop Enclosure SS-FG-7020

Static Solutions, Inc. heel grounders are specially designed to provide a continuous ground path between the user and a properly grounded ESD floor wax, ESD paint, or ESD rubber/PVC tiles. Our heel grounders are designed to drain the static charge of a user that is built up during normal activity. They offer instant static dissipation for rapid protection.
