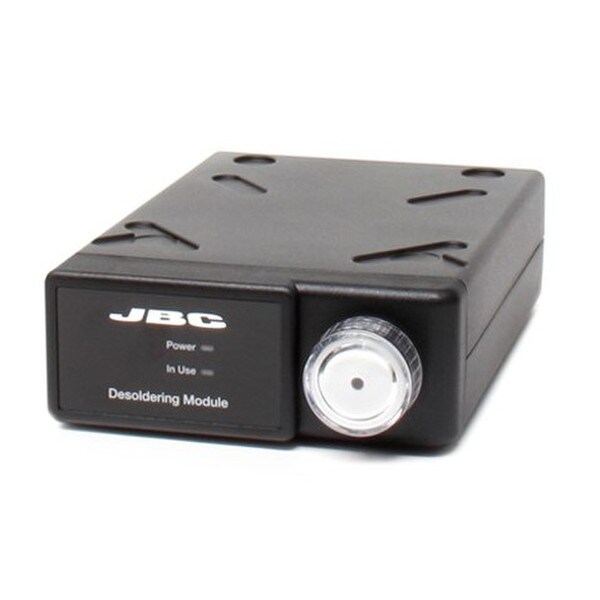

JBC MSE-A Electric Desoldering Module for DDE & DME

SKU JBC-MSE-A
The Electric Desoldering Module is indispensable for a complete desoldering process.
Large Unit Dimensions (inches): 11.02x7.68x4.53
Item Weight: 3.36
(0)No Reviews yet

Details

Its optimized electronic suction system create a vacuum peak at the startup in order to collect the solder before it cools down. It is supplied with easy-to-change filters for extending the pump´s life. The MSE can be joined to any port of the DDE & DME control units and has the possibility to be controlled by the P-005 Pedal. It works with the comfortable DS360 or DR560 desoldering irons and their corresponding tips.
Specifications
Vacuum75% / 570mmHg / 22.4inHg
Flow rate9 SLPM
Ambient operating temp.10-40 ºC / 50-104 ºF
Pedal connection
ESD Safe
Documentation
Manuals:
MSE-A Manual(1.65 Mb)
Brochures:
Modular Line(456 Kb)
Exploded View:

Product Dimensions (in): Length

11.02

Width

7.68

Height

4.53

Weight

3.36
