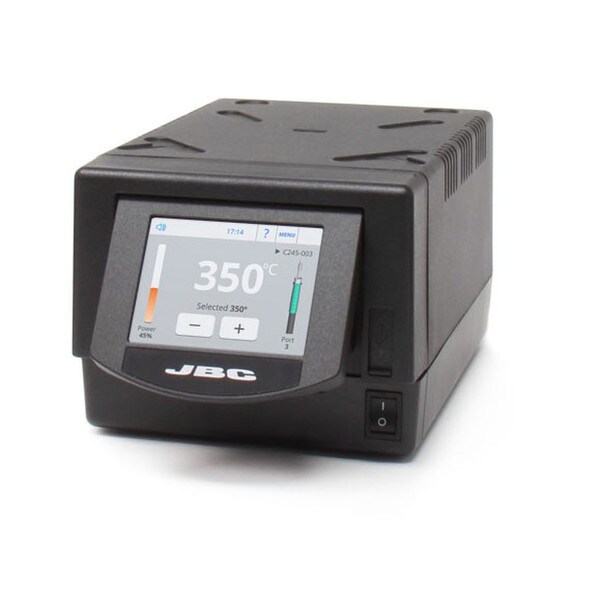

JBC DME-1A 120V 4 Tools Control Unit

SKU JBC-DME-1A
JBC DME-1A 120V - 4 Tools Control Unit. The DME manages up to 4 tools simultaneously and it is fully compatible with most of JBC tools. It works with the JBC exclusive heating system and the intelligent sleep & hibernation modes. It features all the Excellence range benefits such as station customization, full control over the soldering process and remote work management.
Large Unit Dimensions (inches): 11x8.03x8.19
Item Weight: 10.95
(0)No Reviews yet

Details

The easy-to-use menu helps you monitor the work in real time: graphics, partial counters or simultaneous control of ports. The DME also provides you with extra applications that support your work: USB microscope, file storage, unit converter, video, etc. For a basic working system, you need 1 stand, 1 tool and 1 cartridge.
Specifications:
Dimensions148 x 120 x 232 mm
Voltage(AC)120V
Input fuse6A
Output peak power160W per tool
Temperature selection90-450 ºC (190-840 ºF)
Idle temp. stability (still air)±1.5 ºC (±3 ºF)
Tip to ground resistance<2 ohms
Tip to ground voltage<2 mV RMS
Ambient operating temp.10-40 ºC (50-104 ºF)
Communication connectorsUSB-A / USB-B / Peripherals
Robot connectorRJ12
PS connectorRJ12
LAN (Ethernet)RJ45
ESD safe
Documentation:
Manuals:
Brochures:

Product Dimensions (in): Length

11

Width

8.03

Height

8.19

Weight

10.95
