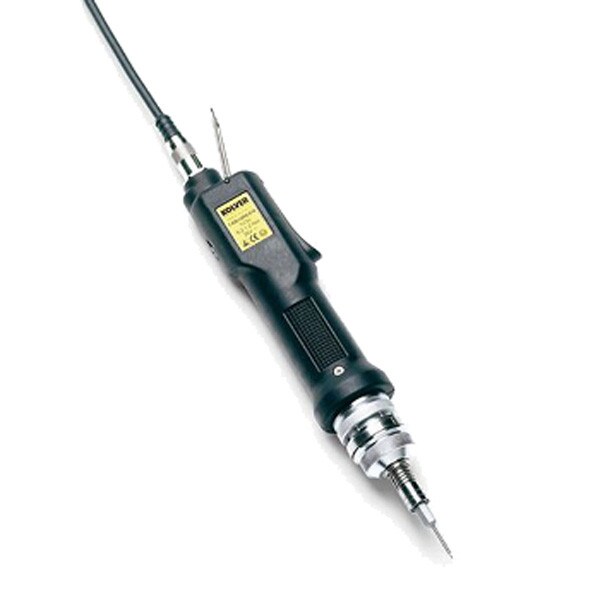

Kolver FAB12RE/FR-PROMO Electric Screwdriver + FREE EDU1FR Controller

FAB12RE/FR by Korver (Torque Range: 1.8 to 10.6 in/lbs). The FAB12RE/FR is an industry-leading electric screwdriver, offering ease of use with high accuracy and durability. They are lightweight (about 1 lb), compact, powerful and come standard with ESD-safe housing certified to SP method 2472 (Ericsson approved). The adjustable RPMs and slow-start options make it a versatile tool ideal for multiple applications. The FAB Series is Kolver’s best-selling electric screwdrivers for the electronic assembly industry. The FAB Series, which have become an industry standard and favorite, offer a long list of features and benefits including:

• Lightweight, compact, powerful
• ESD-safe housing certified to SP method 2472 (Ericsson approved)
• Advanced ergonomic design
• Simple operation, Easy to use
• High accuracy and durability

Torque Range:	1.8 to 10.6 in/lbs
Drive Size:	1/4" hex
RPM Range:	650 - 1000
Screw Size:	M3
Voltage:	90 -230
Weight:	1.1 lbs
Start Option:	Lever
Housing Option:	In-Line
Voltage DC:	30 VDC
ESD:	Safe
RPM Control:	Optional
Screw Counting:	Optional
Torque Settings:	Clutch controlled

A Controller is required for this tool to operateCompatible Controllers:

• EDU1FR - most popular controller because of the RMP control it provides
• EDU1FR/SG - offers the same functionality as the EDU1FR with the addition of an input for remote start and outputs for lever start (motor on) and clutch fired (motor stop).

Items that ship with this unit:

• Screwdriver with ESD-safe body
• 8 ft controller connection cable
• Suspension bail
• FREE EDU1FR Controller included

NOTES: Kolver does not recommend using this product beyond 80% of its max torque range. Failure to follow this advice can lead to premature motor and gear set failure.
