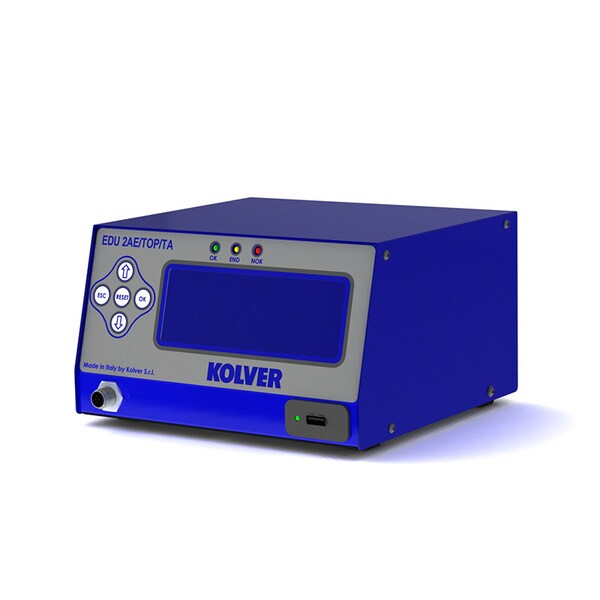

Kolver EDU2AE/TOP/NT/TA Controller

SKU KOL-EDU2AE/TOP/NT/TA
8 P-set programmable controller, torque & angle display, parts counting, 15 I/O
Item Weight: 7
$2,300.00
(0)No Reviews yet

Details

Industrial tightening may require different control strategies and solutions. The most common cases are: torque control with angle monitoring and angle control with torque monitoring. Kolver Multi-Torque Torque&Angle controller can manage all such strategies, with up to 8 individual P-sets. The Torque/Angle Control The main parameters to be controlled are the tightening torque applied to the screw and the rotation angle of the screw, with priority to the torque value. If the torque and angle values found by the system are within the programmed settings, the motor stops automatically and the indication of OK cycle (green led turned on) is given, otherwise an error (red led) is generated. The Angle Control The main parameter to be controlled is the rotation angle of the screw. The motor stops automatically when the pre-set angle value has been reached and an indication of OK cycle (green led turned on) is given. Main features: • Easy to program user interface screens • Password protected • Torque value in Nm or In/lbs • Angle value in degrees • 8 individual P-sets for custom rundown strategies including: - Min/Max torque value - Min/Max angle value - Rundown speed - Slow start/Soft stop - Hard/soft joint - Min/Max rundown time - Max Torque (Threadcutting) if required - Auto reverse if required • 6 torque & angle strategies: - Torque priority: angle count from torque threshold (T) or from remote input (T/I) or from lever input (T/L) - Angle priority: driver stops when angle is reached from threshold torque (A) or from remote input (A/I) or from lever (A/L) IMPORTANT: Continuous use over 80% of torque range is not recommended. *** NEW! EDU2AE/TOP/TA is supplied standard with EDU EXPAND software and an 8Gb USB flash drive. PC programming (back panel): it is possible to set, change and save all parameters through our new “EDU EXPAND” software for PC. EDU EXPAND communicates with the control unit via miniUSB or RS232. Saving/programming on USB flash drive (front panel): you can save the results of each screwing operation directly on USB pen drive! It is also possible to upload via USB drive all parameters/programs previously set on “EDU EXPAND”. Just connect your USB to the port and recall the desired programs on the menu. The programs set on control unit can be downloaded on USB and recalled on another unit and on EDU EXPAND, too. Manuals

Weight

7
