JBC NANE-1C 120V Nano Soldering Station

SKU JBC-NANE-1C

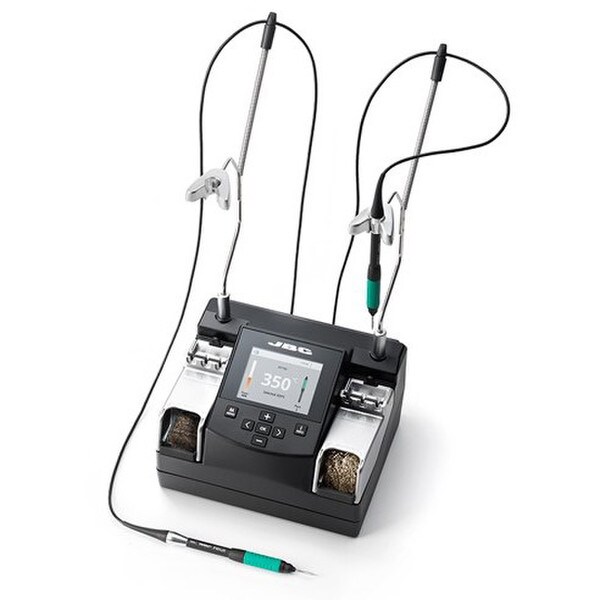

JBC NANE-1C 120V Nano Soldering Station. NANE-1C is best for soldering very small-sized components requiring the highest precision such as chips 0402, 0201, 01005, etc. It works simultaneously with two NT115 Nano Handpieces. The short distance from the tip to the handle offers maximum control even when using a microscope. This station works with the JBC exclusive heating system and the intelligent sleep & hibernation modes. It features all the Excellence range benefits and an easy-to-use menu which helps you monitor the work in real time: graphics, partial counters, tool port monitoring, etc.

Cartridges included: C115101 x1 - C115103 x1 - C115105 x2 - C115107 x1 - C115112 x1 - C115113 x2.

Large Unit Dimensions (inches): 11.02x11.02x6.46
Item Weight: 6.48 lb
(0)No Reviews yet

Details

Product Composition:

  • Control Unit: NAE with tip cleaning system
  • Tools: NT115-A Nano Handle
P-405 Pedal
  • Cartridges: C115101, C115103, C115105, C115107, C115112, C115113

This unit replaces NANE-1A, NANE-1B

Specifications:

Voltage120V
Input Fuse0.5A
Output Peak Power14W per tool
Temperature selection90-450 ºC (190-840 ºF)
Idle temp. stability (still air)±3 ºC (±5.5 ºF)
Tip to ground resistance<2 ohms
Ambient operating temp.10 to 50 ºC / 50 to 120 ºF
Communication connectorsUSB-A / USB-B / Pedal
Robot connectorRJ12 for RS-232 protocol
ESD safe

Product SDS, TDS, Manuals

Documentation:

Manuals:
Exploded View:

Product Dimensions (in): Length

11.02

Width

11.02

Height

6.46

Weight

6.48
