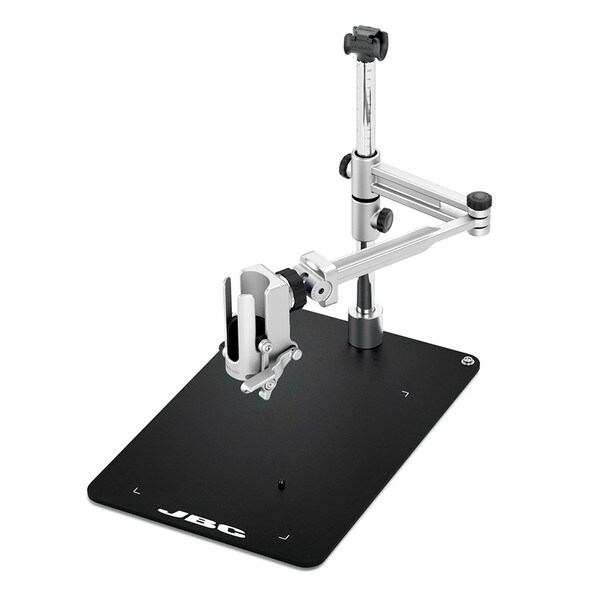

JBC RWS-A PHS Rework Adjustable Arm

SKU JBC-RWS-D
Especially designed for working with the PHS IR Preheater, it allows adjustment for different heights and positions depending on the operator’s needs. This means it can cover the whole working area. The arm can be placed in different positions, affording great flexibility when working on rework projects.
Large Unit Dimensions (inches): 23.43x20.47x7.09
Item Weight: 13.22 lb
(0)No Reviews yet

Details

RWS Adjustable Rework Arm supports Heater Hose Sets allowing hands-free operation. Due to an included adapter unit the Rework Arm is suitable for JTSE and TESE. Its base plate is designed to work with PHS Small Preheater. Tool holder allows inclination and rotation adjustment. Both vertical axis and Tool Holder articulation are scaled, which is helpful in repetitive soldering tasks. Hose Clamp holds the Heater Hose away from the work area to keep it clear of obstacles.

Vertical Movement Thanks to the multiple arm joints the height of the arm can be adjusted to suit all components whatever their size.

Articulated arm It provides full access to the whole work area by fixing the position of the arm joints using the tightening knobs.

Rotating clamp This holds the hose away from the work area to keep it clear of obstacles.

Product SDS, TDS, Manuals

Documentation

Manuals:
RWS-A Manual(2.9 Mb)

Brochures:

Exploded View:

Product Dimensions (in): Length

23.43

Width

20.47

Height

7.09

Weight

13.22
